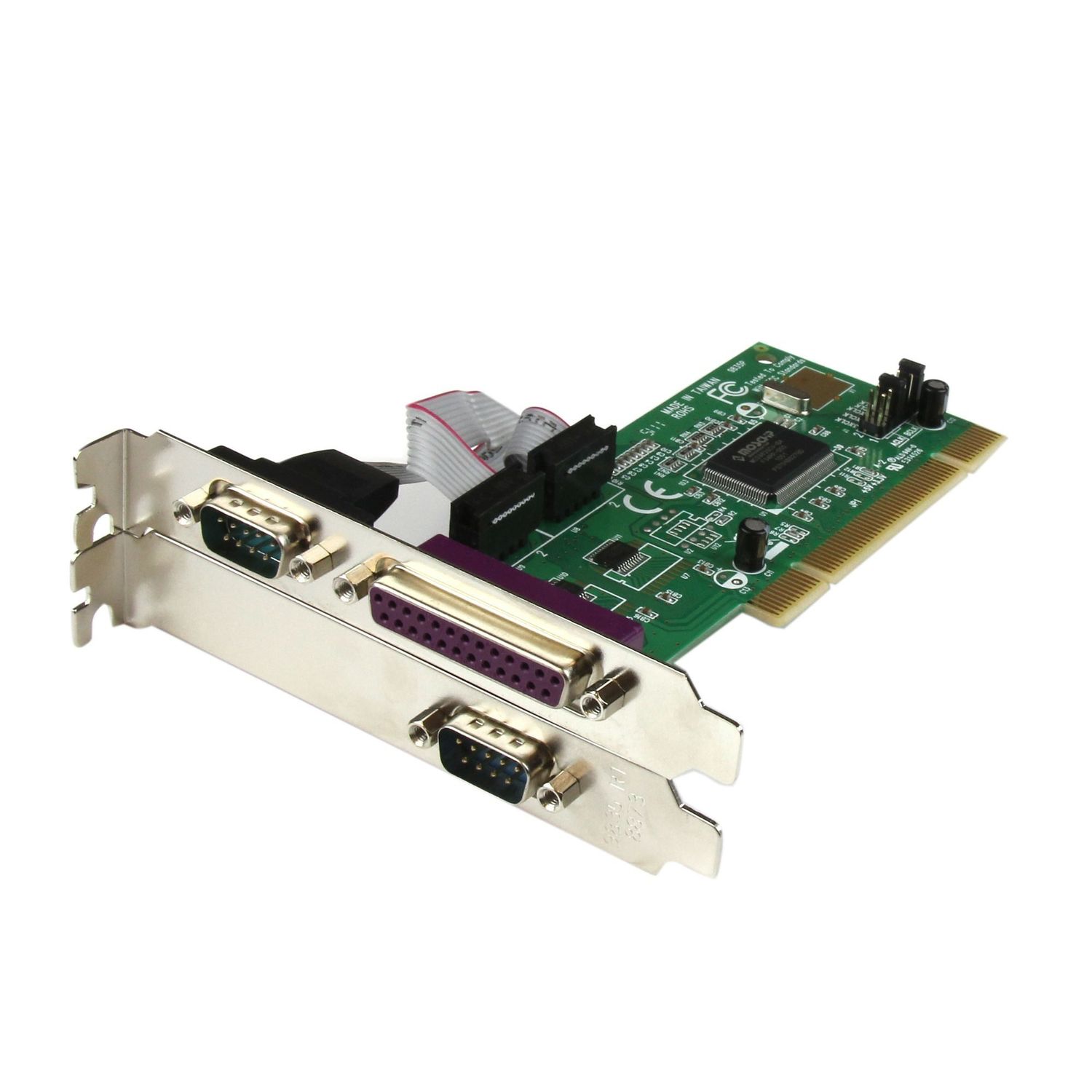

StarTech 2 Serial 1 Parallel Combo PCI Card
SKU PCI2S1P
$40.00
Sold out
Two 16C550 serial ports with data transfer up to 115.2 Kbits/sec
One EPP/ECP parallel port with data transfer up to 1.5 Mbits/sec
Includes optional low profile/half-height mounting bracket
Sold out
Product Details
UPC: 065030781022
Brand: StarTech
Compatibility
Windows® DOS, 95, 98SE, 2000, CE 5.0 / 6.0, Embedded System 2009, XP Embedded, POS Ready 2009, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
Linux 3.5.x to 4.11.x LTS Versions only
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
Linux 3.5.x to 4.11.x LTS Versions only
Specifications
| Warranty Information | Warranty | Lifetime |
|---|---|---|
| Connector(s) | 1 - Connector Type(s) | PCI / PCI-X (Universal 3.3 & 5V, 32-bit) |
| 2 - External Ports | DB-9 (9 pin, D-Sub) | |
| 1 - External Ports | DB-25 (25 pin, D-Sub) | |
| Environmental | Operating Temperature | -10°C to 80°C (14°F to 176°F) |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| Humidity | 5~85% RH | |
| Hardware | Ports | 2 |
| Interface | Serial | |
| Parallel | ||
| Bus Type | PCI / PCI-X (5 / 3.3V) | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Port Style | Integrated on Card | |
| Chipset ID | ASIX - MCS9835CV | |
| Packaging Information | Package Height | 1.3 in [32 mm] |
| Package Length | 5.7 in [14.5 cm] | |
| Shipping (Package) Weight | 7.1 oz [200 g] | |
| Package Width | 6.9 in [17.5 cm] | |
| Performance | Maximum Data Transfer Rate | Up to 1.5 Mbits/sec. |
| Serial Protocol | RS-232 | |
| Max Baud Rate | 115.2 Kbps | |
| FIFO | Serial: 32 Bytes Parallel: 16-Bytes |
|
| Physical Characteristics | Weight of Product | 2.3 oz [66 g] |
| Material | Steel | |
| Product Length | 4.7 in [12 cm] | |
| Product Width | 0.8 in [20 mm] | |
| Product Height | 4.7 in [12 cm] | |
| Software | OS Compatibility | Windows® DOS, 95, 98SE, 2000, CE 5.0 / 6.0, Embedded System 2009, XP Embedded, POS Ready 2009, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016, 2019 Linux 3.5.x to 4.11.x LTS Versions only |
| What's in the Box | 1 - Included in Package | PCI 2S1P Card |
| DB9 Ribbon Cable | ||
| Driver CD | ||
| Instruction Manual | ||
| 3 - Included in Package | Low Profile Brackets |
