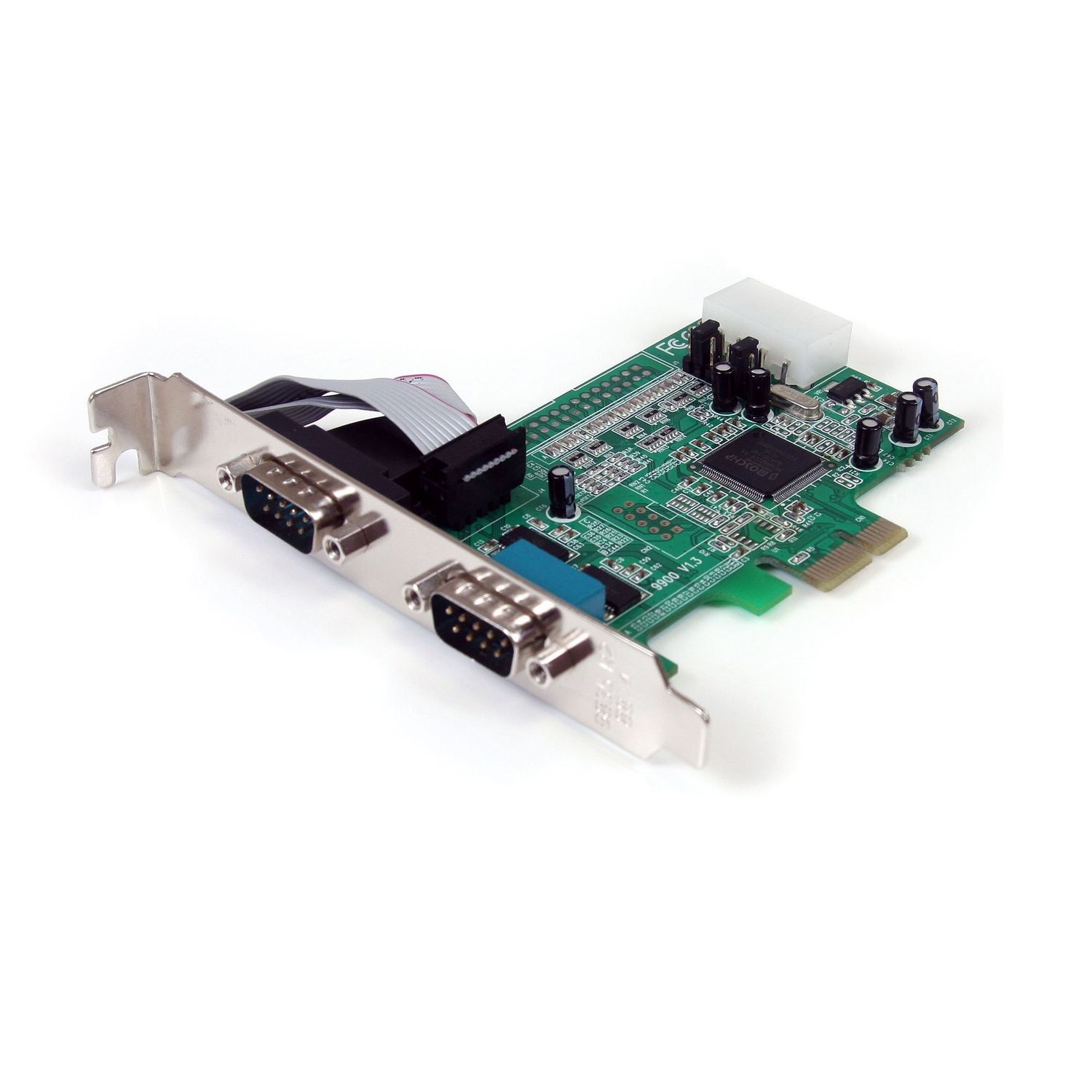

StarTech 2Port RS232 Serial Adapter PCI Express
SKU PEX2S553
$45.00
Two high speed RS232 serial ports with support for data transfer rates up to 460.8 Kbps
Compliant with PCI Express base specifications revision 1.0a
Includes half-height/low profile mounting bracket
In stock: 2 available
Product Details
UPC: 065030841740
Brand: StarTech
Compatibility
Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS X® 10.4 to 10.10
Linux kernel 2.6.x to 4.11.x LTS Versions only
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS X® 10.4 to 10.10
Linux kernel 2.6.x to 4.11.x LTS Versions only
Specifications
| Warranty Information | Warranty | 2 Years |
|---|---|---|
| Connector(s) | 1 - Connector Type(s) | PCI Express x1 |
| 1 - Internal Ports | LP4 (4 pin; Large Drive Power) | |
| 2 - External Ports | DB-9 (9 pin, D-Sub) | |
| Environmental | Operating Temperature | -10°C to 80°C (14°F to 176°F) |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| Humidity | 5~85% RH | |
| Hardware | Ports | 2 |
| Interface | Serial | |
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Port Style | Integrated on Card | |
| Chipset ID | ASIX - MCS9922CV-AA | |
| Packaging Information | Package Height | 1.3 in [32 mm] |
| Package Length | 6.9 in [17.5 cm] | |
| Shipping (Package) Weight | 5.3 oz [151 g] | |
| Package Width | 5.7 in [14.5 cm] | |
| Performance | Serial Protocol | RS-232 |
| Max Baud Rate | 460.8 Kbps | |
| FIFO | 128 Bytes | |
| Physical Characteristics | Weight of Product | 2.2 oz [61 g] |
| Color | Green | |
| Material | Steel | |
| Product Length | 4.1 in [10.5 cm] | |
| Product Width | 4.7 in [12 cm] | |
| Product Height | 0.8 in [20 mm] | |
| Software | OS Compatibility | Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.4 to 10.10 Linux kernel 2.6.x to 4.11.x LTS Versions only |
| Special Notes / Requirements | Note | Selectable power output on pin 9 of the serial port |
| What's in the Box | 1 - Included in Package | 2 Port PCI-Express Serial Card |
| Driver CD | ||
| Instruction Manual | ||
| 2 - Included in Package | Low Profile Brackets |
